Superheated-water spray sterilization, 105–121 °C
Automatic bottle loading and unloading
F0 control, EN285 & GMP aligned, GB150 pressure vessel
Tell us your material or budget, we'll reply you ASAP within 24 hours.

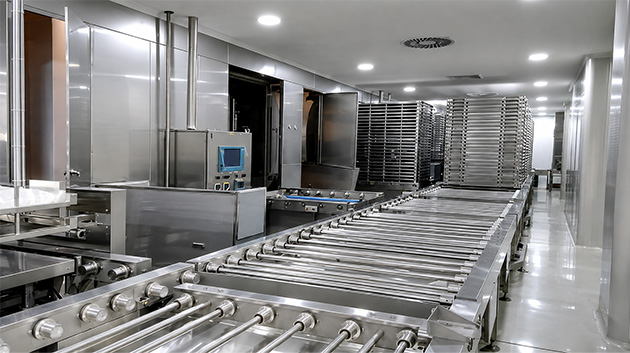

Superheated-Water Autoclave with Automatic Load/Unload System
AIPAK Engineering superheated-water autoclave performs terminal sterilization of PP infusion bottles using superheated circulating water spray (105–121 °C) as the sterilization medium, ensuring uniform heat distribution and preventing container deformation. Configured with an automatic bottle loading and unloading system, the autoclave forms the sterilization module of a complete PP bottle IV production line, matched to a 12,000 bottles/hour (500 ml) line.
The pass-through (double-door) chamber is built entirely from SS304 to GB150 pressure-vessel standard, EN285 aligned, with F0-controlled cycles and 21 CFR Part 11 compliant data recording.
Autoclave Sterilization System Features
1.Superheated-water spray system ensures uniform heat distribution with ±1 °C temperature uniformity via multi-nozzle design.
2.Pass-through (double-door) autoclave; sliding door with inflatable seal; cycle starts only after the door is fully closed and locked.

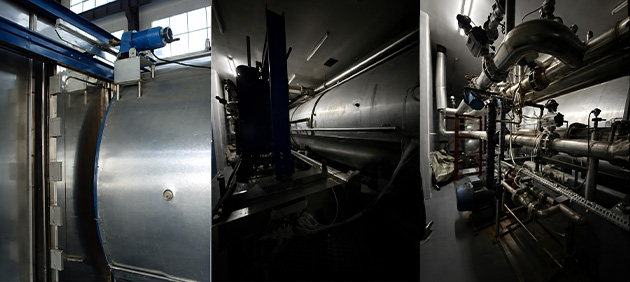

3.Circular chamber structure, fully SS304, design pressure 0.3 MPa, GB150 pressure-vessel standard.
4.Three selectable control modes: time & temperature; F0; or time, temperature & F0 — meeting F0 ≥ 8.

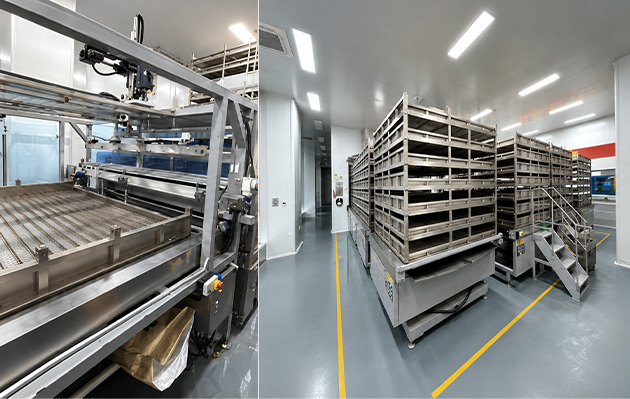

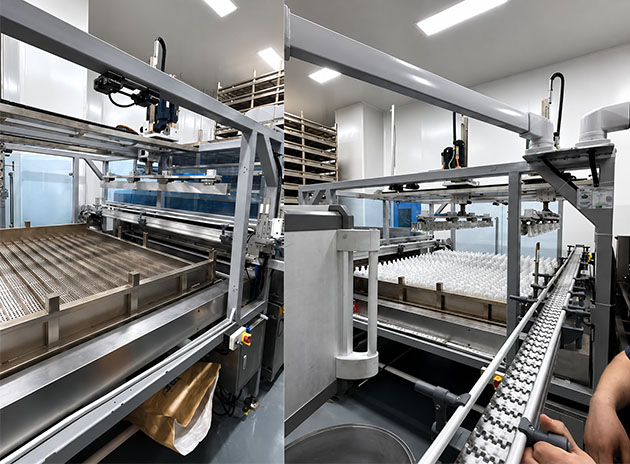

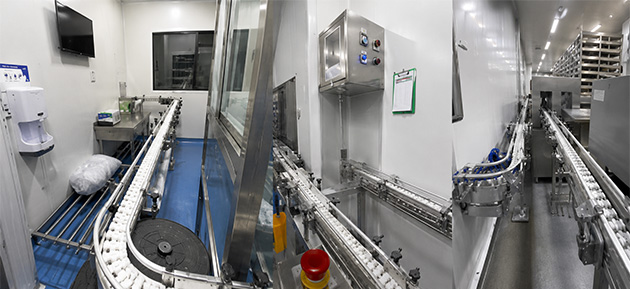

5.Automatic tray steering, folding, bottle loading and unloading with conveyor stations for continuous flow.
6.PLC + HMI + PC + data recorder; 21 CFR Part 11 compliant records with F0 value, temperature, pressure and time.
7.Premium components: Alfa Laval heat exchanger, Spirax Sarco steam trap, GEMU valves, Siemens PLC.
Autoclave Sterilization System Technical Specification
| Item | Specification |
| Sterilization method | Superheated circulating water spray |
| Working temperature | 105–121 °C |
| Temperature uniformity | ±1 °C |
| Design pressure | 0.3 MPa |
| Chamber material | SS304, 8 mm thickness, 0.6 μm inner finish |
| Pressure-vessel standard | China GB150 / EN285 aligned |
| Cycle time per batch | About 100–120 minutes |
| Control system | Siemens S7-1200 PLC + HMI + PC + paperless recorder |
| Compliance | GMP, 21 CFR Part 11 |

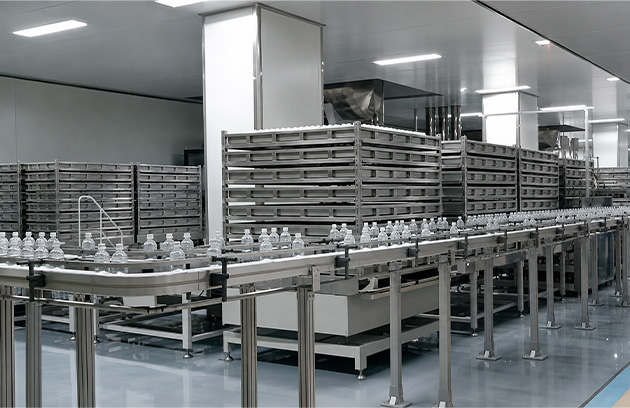

| Matched line capacity | 12,000 bottles/h (500 ml PP IV bottle) |
