Your Pharmaceutical Preparation & CIP/SIP System Provider
AIPAK Engineering Preparation & CIP/SIP System
AIPAK Engineering preparation and CIP/SIP system covers the liquid-preparation core of pharmaceutical production — from concentrated and dilute preparation tanks with magnetic stirring, filtration and weighing, to CIP (clean-in-place) automatic cleaning and SIP (sterilize-in-place) / pure-steam sterilization. The three work together: liquid is prepared in the tanks, then the tanks, pipes and filling lines are cleaned by CIP and sterilized by SIP — all without disassembly.
Every product-contact surface is 316L stainless steel with sanitary, dead-corner-free design; the system runs under PLC automatic control with conductivity monitoring, temperature and concentration sensors, and traceable cleaning records. Delivered as an integrated, GMP-compliant system with IQ/OQ and validation support.
AIPAK Engineering delivers preparation, CIP and SIP as one linked system — one supplier for mixing, cleaning and sterilization — with 316L sanitary design, PLC control, and GMP validation support.

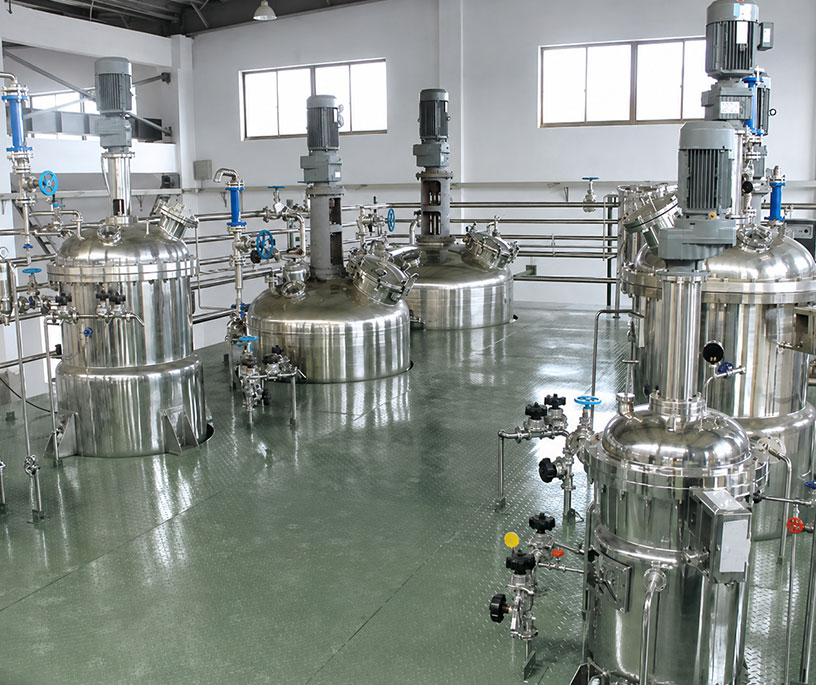

Liquid Preparation (Mixing) System
Pharmaceutical Liquid Preparation (Mixing) System
Complete liquid preparation system with concentrated and dilute preparation tanks, magnetic stirring, filtration and weighing. Product-contact parts in 316L stainless steel with sanitary dead-corner-free design; magnetic stirrer ensures uniform mixing without contamination; integrated CIP/SIP interfaces for cleaning and sterilization. PLC control with temperature, level and concentration monitoring.
Concentrated + dilute tanks, magnetic stirring, filtration, weighing
316L sanitary design, no dead corners, CIP/SIP ready
PLC control, uniform mixing, GMP compliant
CIP Cleaning System
Automatic CIP (Clean-in-Place) System
Automatic in-place cleaning of pharmaceutical tanks, pipes, filling lines, filters and process equipment — without disassembly. Acid, alkali and hot-water tanks with automatic dosing; concentration and conductivity monitoring; spray balls sized to vessel capacity; high-turbulence, high-flow cleaning to remove residues thoroughly. PLC program control for repeatable, validatable cleaning.
In-place cleaning of tanks, pipes, filling lines — no disassembly
Auto acid/alkali dosing, conductivity monitoring, spray balls
PLC program control, repeatable & validatable, 316L
SIP / Clean Steam Generator
Clean Steam Generator for SIP Process (PLC Automatic)
Produces pure, sterile, pyrogen-free steam (USP standard) from WFI or purified water for SIP (sterilize-in-place) of tanks, pipes and filling systems. Three-stage separation — falling-film evaporation, gravity settling, wire-mesh demisting — ensures steam quality. All contact parts SS316/316L, compact design, PLC automatic control, cGMP compliant.
Pure, sterile, pyrogen-free steam, USP standard
Three-stage separation: falling-film / gravity / wire-mesh demisting
SS316/316L contact parts, PLC control, cGMP
Preparation & CIP/SIP System — Technical Specification
| Item | Specification |
| Preparation tanks | Concentrated + dilute, 316L, magnetic stirring |
| Tank volume | Configurable to demand |
| Stirring | Magnetic stirrer, uniform mixing, no contamination |
| CIP tanks | Acid / alkali / hot-water, with auto dosing |
| CIP monitoring | Conductivity meter, concentration sensor |
| SIP steam | Pure steam, USP standard, from WFI/purified water |
| SIP separation | Falling-film evaporation + gravity settling + wire-mesh demisting |
| Contact material | 316L / SS316 stainless steel |
| Control | PLC + HMI, automatic program control |
| Compliance | GMP, cGMP, IQ/OQ validation |
