Your Automatic Syrup Filling Line Provider
- Complete turnkey line: washing → filling & capping → cup-capping → labeling → cartoning → case packing
- 16 ceramic pumps, up to 150 bottles/min, camera-vision level detect & reject
- Glass or plastic bottles (30–250 ml), CIP included, GMP & CE
AIPAK Engineering Automatic Syrup Filling Line
AIPAK Engineering syrup filling line is a complete turnkey system for pharmaceutical syrups and oral liquids, integrating CIP cleaning, vertical air bottle washing, high-speed filling & capping, camera-vision level detection, measuring-cup capping, round-bottle labeling, cartoning and case packing into one continuous line. It handles 30 ml–250 ml glass or plastic bottles (changed by specification parts) at up to 150 bottles/min, with 16 ceramic pumps and 316L product-contact parts.
The line runs under full-servo Siemens PLC control, with camera-vision fill-level detection and automatic rejection, no-bottle-no-fill / no-bottle-no-cap protection, and a separated CIP pipeline to prevent cross-contamination. From bottle washing to case packing, the whole line is delivered as one contract — designed to GMP & CE, with IQ/OQ and FAT/SAT protocols.
AIPAK Engineering delivers the syrup line as one linked turnkey system — washing, filling, capping, measuring-cup capping, labeling, cartoning and case packing — under one contract, with IQ/OQ protocols, FAT/SAT, GMP & CE certificates.
Automatic Syrup Production Line

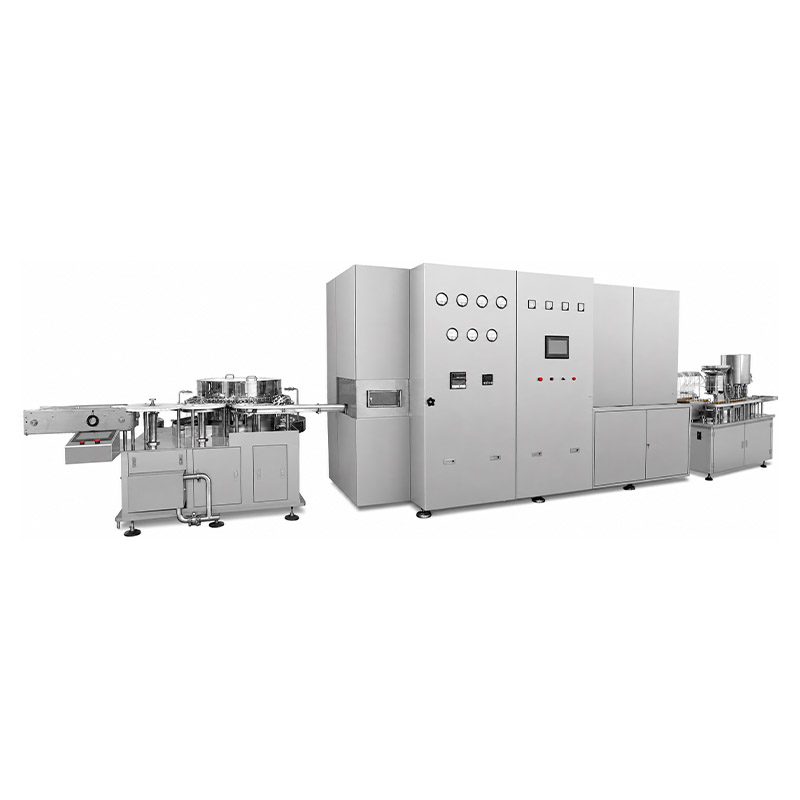

APSF-16S Full-Servo Automatic Syrup Production Line (Turnkey)
The complete APSF-16S syrup line links CIP cleaning, vertical air washing, 16-pump high-speed filling with 12-head capping, camera-vision level detection & reject, measuring-cup capping (APK-M-8), round-bottle labeling, cartoning and case packing into one full-servo turnkey line. It runs 30–250 ml glass or plastic bottles at up to 150 bottles/min, with 16 ceramic pumps, capping acceptance ≥ 99.8%, all under Siemens PLC servo control.
Full turnkey: washing → fill & cap → cup-cap → label → carton → case pack
16 ceramic pumps, 150 bottles/min (125ml), camera-vision level detect & reject
Glass or plastic bottles, CIP included, capping ≥ 99.8%, GMP & CE
Automatic Glass Bottle Syrup Filling Production Line
AIPAK Engineering glass bottle syrup filling production line is composed of four types of equipment: bottle unscrambler, bottle washing machine, tunnel sterilization oven, and liquid filling and capping machine. Each equipment can also be working independently; it can automatically complete bottle unscrambling, cleaning, pre-heating, sterilization, drying, cooling, filling, screw (rolling) capping, and other processes and is suitable for syrups, tinctures, wines, health products, beverages, sauces and other liquids with different viscosity in the Aipak Engineering.
High degree of automation and with stable and reliable operation
High-precision color touch screen operation monitoring
High capacity to realizes electromechanical integration
Full Automatic High Precise Plastic Bottle Syrup Filling Production Line
AIPAK Engineering plastic bottle syrup filling production line is composed of four types of equipment: bottle unscrambler, bottle washing machine, tunnel sterilization oven, and liquid filling and capping machine. Each equipment can also be working independently; It can automatically complete bottle unscrambling, cleaning, pre-heating, sterilization, drying, cooling, filling, screw (rolling) capping, and other processes and is suitable for pharmaceutical syrups, oral liquids and other liquids of different viscosity.
Easy adjust filling volume and filling speed
High-performance non-bottle no filling, no bottle no capping
Full-line linkage
Syrup Filling Line — Technical Specification
| Item | Specification |
| Line model | APSF-16S (full-servo) |
| Bottle material | Glass or plastic (by specification parts) |
| Bottle size | 30–250 ml |
| Line speed | up to 150 bottles/min (125 ml); air washer 150–200/min @100–120ml |
| Filling pumps | 16 ceramic pumps, 16 × 316L needles |
| Capping heads | 12-head capping |
| Capping acceptance | ≥ 99.8% |
| Bottle breakage (washer) | ≤ 0.01% |
| Level detection | Camera vision detect & auto-reject |
| Measuring-cup capping | APK-M-8, 8 heads, ≥ 120 bottles/min, single-knife follow-up |
| Labeling | APCL-80, 150–300 bottles/min (50ml), ±1 mm, YASKAWA servo |
| Cartoning | APC-260, up to 260 cartons/min, with leaflet folding |
| Case packing | APDL-200 sealing + APK-500 case packer |
| Cleaning | 300L CIP system (acid/alkali/hot-water), SS316L |
| Product-contact material | 316L stainless steel |
| Control | Siemens PLC + HMI, ABB/Schneider/YASKAWA |
| Compliance | GMP & CE, IQ/OQ, FAT/SAT |
