4-head peristaltic-pump filling — gentle on particle-laden suspensions
Robotic stopper placement, no-bottle-no-fill / no-bottle-no-stopper
Glass or plastic vials 100–500 ml, filling accuracy ±1%, GMP
Tell us your material or budget, we'll reply you ASAP within 24 hours
Suspension Vial Filling-Stoppering-Capping Line
AIPAK Engineering RQJS-4 suspension vial line is the main equipment for filling suspensions into vials. It consists of a bottle feeder, a 4-pump filling & stoppering machine and a single-head servo capping machine. The filling machine uses a 4-pump rotary peristaltic system with a robotic stopper-placement system (no bottle, no filling; no bottle, no stoppering); the capping machine uses a single-head, three-knife servo capping system.
Because suspensions carry solid particles and settle easily, the line is built around peristaltic-pump filling — the liquid touches only the tubing, so there is no shearing, no dead-corner build-up, easy cleaning and no cross-contamination. It handles glass or plastic vials from 100 ml to 500 ml at a stable 35–40 bottles/min (peristaltic pump), rising to 40–50 bottles/min with 316L stainless-steel pumps. Designed for flexibility and quick changeover between container sizes; each machine can run standalone or in linkage line.

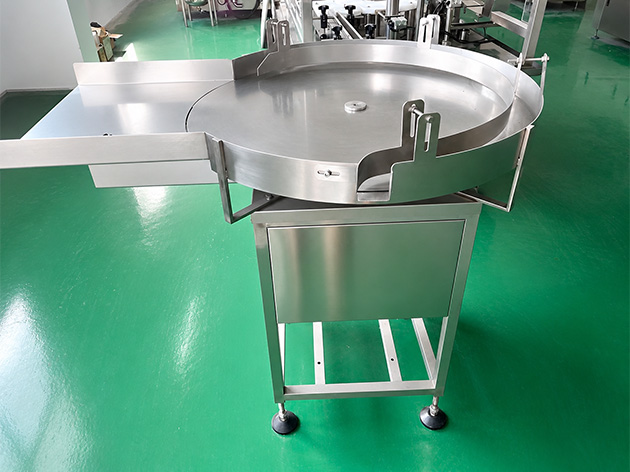

Bottle Feeder (RQGP)
Motor-driven turntable that rotates vials on the working platform and guides them smoothly along the track into the filling machine. Ensures a smooth connection between upstream and downstream equipment, prevents bottle tipping and jamming, and stays synchronized with the filling machine for continuous operation. Made of SUS304 stainless steel with a 3 mm-thick stainless-steel turntable. 220V, 0.3 kW, 1250×900×1015 mm.

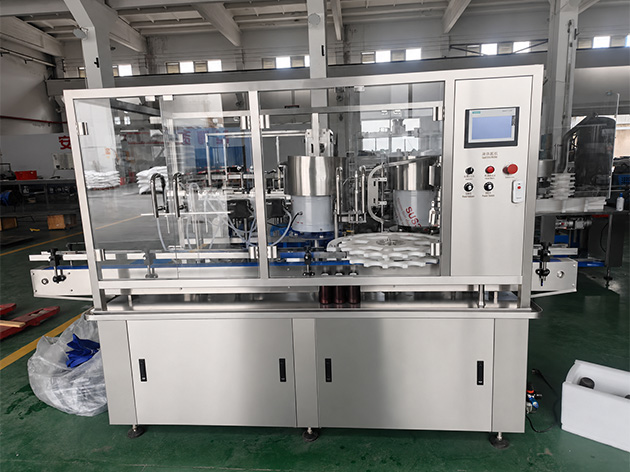

4-Pump Filling & Stoppering Machine (RQJS-4)
The core of the line. An integrated steel frame (nut-positioned, baked-paint anti-rust) replaces the old welded frame to prevent deformation and hold precision. Filling uses 4 peristaltic pumps — the medicine touches only the tubing, giving gentle, shear-free handling of suspensions, no dead-corner build-up and easy cleaning. Robotic stopper placement follows, with no-bottle-no-fill and no-bottle-no-stopper protection and a low-noise stopper sorter. Fill volume is set on the touch screen; height-adjust positions have scales; each part is numbered for identification. 4 filling heads, 100–500 ml, ±1%, stable 35–40 bottles/min (peristaltic) / 40–50 bottles/min (316L pump). Product-contact parts 316L; 380V, 4 kW, 2400×1400×1700 mm.

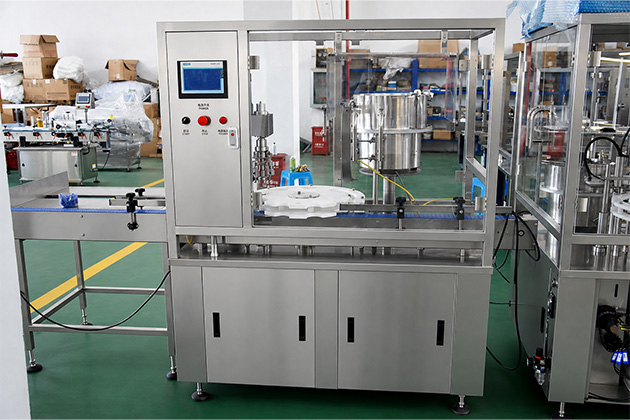

Servo Capping Machine (RQZ)
Single-head, three-knife servo capping. Turntable positioning aligns the vial; cylinders hold the vial firmly to stop it turning with the cap, ensuring a secure outer-cap seal. An anti-jamming device lets the capping head slip after the cap is tight, protecting the cap from burrs. The upgraded capping box replaces the old belt structure with imported oil-based material — no wear, no parts to replace, lower noise, no dropped caps. Shaker cap-sorter with missing-cap alarm. Stable 50 bottles/min (design 60 bottles/min); 100–500 ml; 380V, 4 kW; Siemens touch screen with three-level password.
Suspension Vial Filling Line Features:
1.Complete line: bottle feeder → 4-pump peristaltic filling & stoppering → single-head servo capping.
2.Applicable to glass or plastic vials, 100–500 ml (changed by specification parts); one spare mold set included.
3.4-head peristaltic-pump filling — medicine touches only the tubing, gentle and shear-free, ideal for suspensions; no dead-corner build-up, easy cleaning.
4.Optional 316L stainless-steel pumps raise output to 40–50 bottles/min.
5.Filling accuracy ±1%; touch-screen fill-volume setting.
6.Robotic stopper placement, no-bottle-no-fill / no-bottle-no-stopper; low-noise stopper sorter.
7.Single-head three-knife servo capping; cylinders hold the vial to prevent spin; anti-jam slip protects the cap.
8.Upgraded capping box (imported oil-based material): no wear, low noise, no dropped caps, maintenance-free.
9.Shaker cap sorter with missing-cap alarm.
10.Integrated steel frame, nut-positioned, baked-paint anti-rust — prevents deformation, holds precision.
11.Product-contact parts and filling needles in 316L stainless steel; tabletop and panels in Baosteel 304.
12.Frequency variable speed; each part numbered; height-adjust with scales for quick changeover.
13.Siemens HMI with three-level password; remote jog for debugging.
14.Each machine runs standalone or in linkage line; quick changeover for multi-use flexibility.
15.Delivered with SAT/FAT, IQ/OQ/PQ/DQ, material report, GMP documentation, electrical schematic, one-year warranty and one-week training.
Suspension Vial Filling Line Technical Specification:
| Item | Bottle Feeder (RQGP) | 4-Pump Filling & Stoppering (RQJS-4) | Servo Capping (RQZ) |
| Function | Vial feeding | Peristaltic filling + robotic stoppering | Three-knife servo capping |
| Filling heads | — | 4 (peristaltic; 316L pump optional) | — |
| Stoppering | — | Single-head robotic, no-bottle-no-stopper | — |
| Capping heads | — | — | Single head, three-knife |
| Vial size | — | 100–500 ml | 100–500 ml |
| Filling accuracy | — | ±1% | — |
| Output | Meets line demand | 35–40 /min (peristaltic), 40–50 /min (316L) | 50 /min (design 60) |
| Power | 220V, 0.3 kW | 380V, 4 kW | 380V, 4 kW |
| Dimensions (mm) | 1250×900×1015 | 2400×1400×1700 | 2400×1400×1700 |
| Contact material | SUS304 | 316L (contact), 304 (frame) | 304 |
