Bag making high efficiency
Compact structure,reduced workshop
Low energy consumption
Tell us your material or budget, we'll reply you ASAP within 24 hours

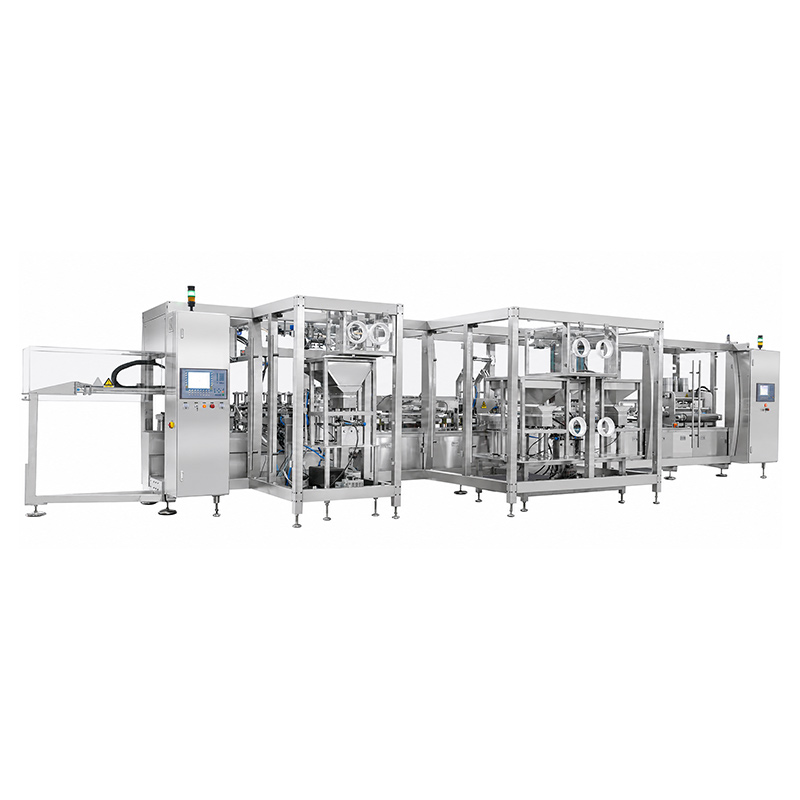

SRDS(Double Hard Port) series Non PVC soft bag IV solution production line
AIPAK Engineering SRDS(Double Hard Port) series Non PVC soft bag IV solution production line is used to automatically produce 1000-5000ml double hose Non-PVC soft bags. It is designed for pharmaceutical use according to the GMP and FDA guidelines.It can automatically complete the processes such as film opening, printing, batch number printing, bag making, filling, automatic cap feeding, cap welding and bag discharge; the production line can be equipped with soft bag transmission, sterilization, leak detection, light inspection, packaging and other auxiliary equipment to complete the whole production line.
It is mainly used for automatic filling of conventional infusion, special infusion, flushing / urinary, par-enteral nutrition, dialyzate, antibiotics, blood products, lipids and special drugs.
Double Hard Port Non PVC soft bag example
AIPAK Pharma Engineering SRD(Double Hard Port) series Non PVC soft bag IV solution production line Features:
1.The structure is compact, covers an area of small, reduce the clean workshop area, reduce the energy consumption of the air clean.
2.The continuous tension membrane technology, reduce bag location take time, bag making high efficiency.
3.Bag width can be adjusted, reduce the convenient with film quantity, save costs and bag type is more beautiful.
4.Main transmission motor and long stroke cylinder servo institutions, smooth operation, good reliability, small impact improve production ability.
5.In front of a group of forming an excuse, preheat preheat institutions interface, it is suitable for the full thermal bonding different manufacturer film and the interface between the welding forming, ensure that leak bag rate is extremely low.
6.Forming institution is approved by the optimization design improve the welding stations speed.
7.Bag relay in surface of the interface are no longer with parts contact, to eliminate the visible foreign matter production.
8.The overall design of the desktop machine, be in place convenient, debugging time is short, easy to clean.
AIPAK Pharma Engineering SRD(Double Hard Port) series Non PVC soft bag IV solution production line Technical Specification:
| Mode(double hardpart) | SRDS1200 | SRDS2500 | SRDS3800 | SRDS5000 | SRDS7500 | ||
| Max. production capacity | 1100 | 2100 | 3000 | 3900 | 4800 | ||
| Size | 100-1000ml | 100-2000ml | 100-500ml | ||||
| Bag wiath type | 120、130、135 | ||||||
| Fling accuray | 100ml士2%、250ml士1.25%、 500ml士0.75%、 1000ml士0.5%、2000ml士0.3% | ||||||
| Floor area( 135 type) | 2940x2660 | 6000x2660 | 6100x2660 | 7865x2660 | 10020x2660 | ||
| Floor areal 120 type) | 2940x2660 | 6000x2660 | 6100x2660 | 7865x2660 | 9090x2660 | ||
