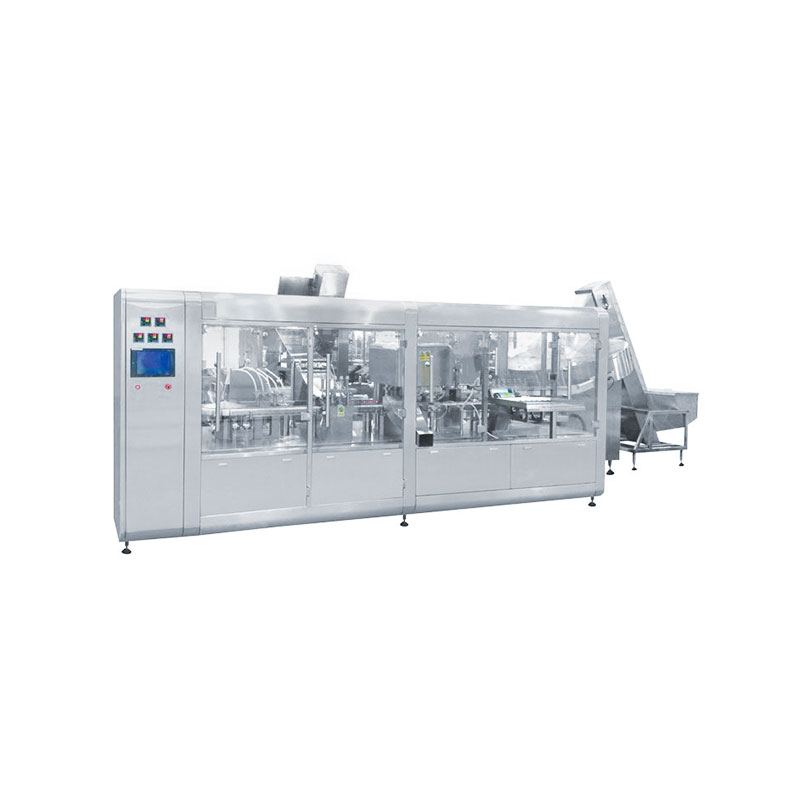

Easy-to-fold Plastic Bottle Oral Liquid Production Line
AIPAK Engineering easy-to-fold plastic bottle oral liquid production line conforms to the “CGMP” requirements, applicable to filling and sealing the new easy-folding plastic bottle. Through a series of special process works of automatic bottle supply, bottom filling, automatic capping, hot melt-type bottom sealing, pneumatic fingers clip sending bottles the production line finishes filling and sealing.And the whole production line adopts PLC control, man-machine interface operation, automatic and manual switch control, touch screen Chinese menu monitors, with empty bottles leak, no bottle no filling, leakage bottles and non-cap bottles remove, frequency stepless speed regulation , automatic counting functions.
The machine configured easy-folding plastic bottle is manufactured in clean area, that can reduce the washing, drying and sterilization processes, saving production site area, no broken bottle during loading and transportation.
Easy-to-fold plastic bottle example:
Easy-to-fold Plastic Bottle Oral Liquid Production Line Features:
1.This machine completes the filling and sealing work through a series of special processes, such as automatic bottle loading, bottom filling, automatic capping, hot-melt bottom sealing, pneumatic finger clamp bottle delivery, etc. it can be used as an ideal equipment for domestic oral liquid filling and production.
2.The whole machine adopts PLC control, man-machine interface operation, automatic and manual switching control, touch screen full Chinese menu monitoring, and has the functions of empty bottle leak detection, bottle shortage and filling stop, uncapped bottle and missing bottle elimination, variable frequency stepless speed regulation, automatic counting, etc.
3.The foldable plastic bottles configured by this machine are manufactured in a clean area, which can reduce the processes of bottle washing, drying and sterilization, save space, and also have the advantages of not breaking in bottling and transportation.
Easy-to-fold Plastic Bottle Oral Liquid Production Line Technical Specification:
1．Suitable bottle size：5-20ml（specially designed easy-folding plastic bottles）
2．Capacity：160 bottles/min
3．Method of measurement：All metal rotary piston pump
4．Metering accuracy：conforms to the state Pharmacopoeia
5．Method of sealing：bottom auto- heat melt sealing
6．Compressed air consumption：2m3/min(pressure 0.7Mpa);
7．Total power：16KW,20KW
8．Power supply：380V，50Hz，3-phase 5-wire system
9．Overall size：6200×4200×2400（mm）
